What is Stainless Steel Tee？

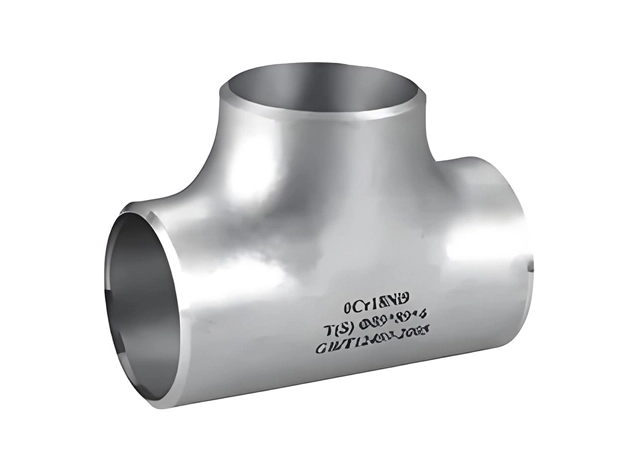

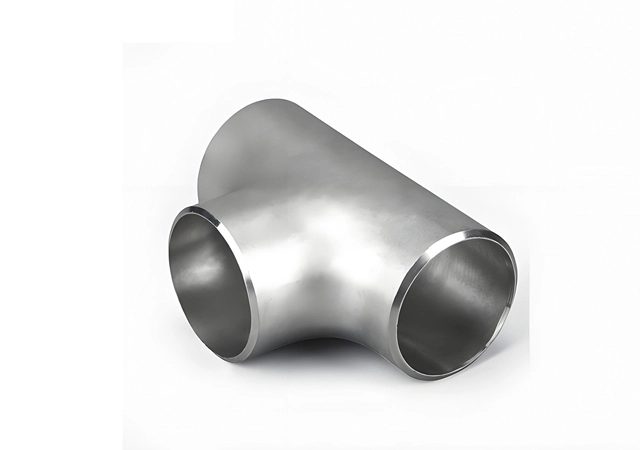

A stainless steel tee is a T-shaped pipe fitting used in pipeline systems to connect three pipes at a 90-degree angle, facilitating the splitting or combining of fluid flow. These fittings are made from stainless steel, which offers superior corrosion resistance, mechanical strength, and durability, making them suitable for various industrial applications.
Stainless steel tees are available in different types, including equal tees (with all three outlets having the same diameter) and reducing tees (with a smaller diameter branch outlet). They are commonly used in petrochemical, oil and gas, pharmaceutical, and food processing industries due to their ability to withstand harsh environments and maintain hygiene.
The material's non-porous surface also makes it easy to clean and sterilize, which is crucial for industries with high sanitation standards. Stainless steel tees conform to standards such as ASTM A234 and ASME B16.9, ensuring high-quality performance and reliability.
Types of Stainless Steel Tee
Equal Tee: All three openings are the same size.
Reducing Tee: The branch connection is smaller in size than the main pipe.
Connection Methods of Stainless Steel Tee
Stainless steel Butt Weld tees
Description: This method involves welding the tee directly to the pipes. It provides a strong, leak-proof connection and is ideal for high-pressure and high-temperature applications.
Stainless steel Threaded tees
Description: The tee and pipes are connected using internal and external threads. This method is suitable for smaller diameter pipes and offers easy installation and disassembly.
Stainless steel Flange tees
Description: The tee and pipes are connected using flanges and bolts. This method allows for easy disassembly and maintenance.
Stainless steel Socket Weld tees
Description: The pipe is inserted into a socket on the tee and then welded. This method simplifies installation and is suitable for smaller pipelines.
Parameters of Stainless Steel Tee
| Parameter | Details |
| Material | Stainless steel (e.g., 304/304L, 316/316L, 2205). |
| Types | Equal tee, reducing tee. |
| Connection Methods | Butt weld, socket weld, threaded. |
| Sizes | 1/8" to 48" (DN6 to DN1200). |
| Pressure Ratings | Sch 5, Sch 10, Sch 40, Sch 80, etc. |
| Advantages | Corrosion resistance, hygienic, high strength, durable, aesthetic. |
| Disadvantages | Higher cost, heavy, complex welding. |
| Applications | Food and beverage, pharmaceuticals, chemical processing, oil and gas, HVAC. |
| Standards | ASME B16.9, MSS-SP-43, ASTM A403, ASTM A182. |
| Surface Treatment | Pickling, passivation, polishing, electropolishing, sandblasting. |
Standards for Stainless Steel Tee
ASME B16.9:
Description: This standard specifies the dimensions, tolerances, and manufacturing requirements for factory-made wrought stainless steel butt welding fittings, including tees. It covers a wide range of sizes from 1/2″ to 48″ (DN15 to DN1200) and various schedules such as Sch 10, Sch 20, STD, Sch 40, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, and XXS.
ASTM A403:
Description: This standard covers the material specifications for stainless steel fittings, including tees.
Common Grades: WP304, WP304L, WP316, WP316L, WP321, WP347, and others.
ASME B16.11:
Description: This standard specifies the dimensions, tolerances, and manufacturing requirements for forged stainless steel fittings, including threaded and socket weld tees. It covers sizes from 1/8″ to 4″ (DN6 to DN100) and various pressure classes such as Class 2000, 3000, and 6000.
MSS SP-43:
Description: This standard provides specifications for forged steel fittings, including stainless steel tees.
EN10253:
Description: This European standard specifies the requirements for stainless steel fittings for pipelines, including tees.
Advantages of Stainless Steel Tee
Corrosion Resistance: Excellent resistance to rust, oxidation, and chemical attack, making them ideal for harsh environments.
Hygienic Properties: Easy to clean and maintain, suitable for food, pharmaceutical, and sanitary applications.
High Strength: Good mechanical strength, even at high temperatures.
Durability: Long service life with minimal maintenance.
Aesthetic Appeal: Polished finishes are visually appealing, often used in architectural and decorative applications.
Applications of Stainless Steel Tee
Oil & Gas Industry: Used in wellhead assemblies and pipelines for reliability.
Chemical Processing: Ideal for handling corrosive chemicals in processing plants.
Water Treatment: Ensures safe water distribution with corrosion resistance.
Food & Beverage Industry: Preferred for hygiene and easy cleaning.
Pharmaceuticals: Meets strict regulatory standards for cleanliness.
Architecture and Construction: Used in façade designs for aesthetic appeal.
Marine and Offshore: Resistant to saltwater corrosion in marine environments.
General Industrial Applications: Versatile for various manufacturing and support structures.
