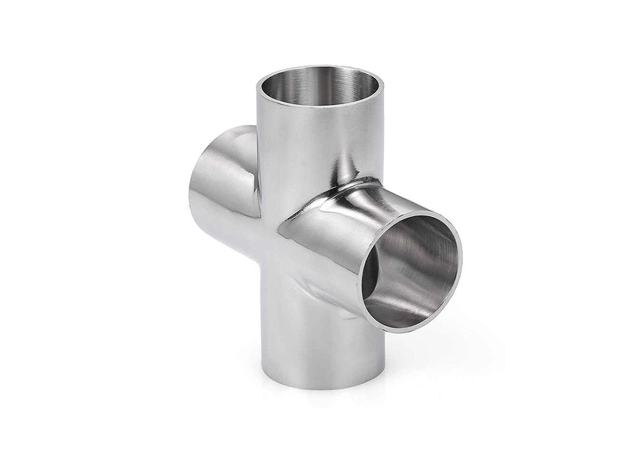

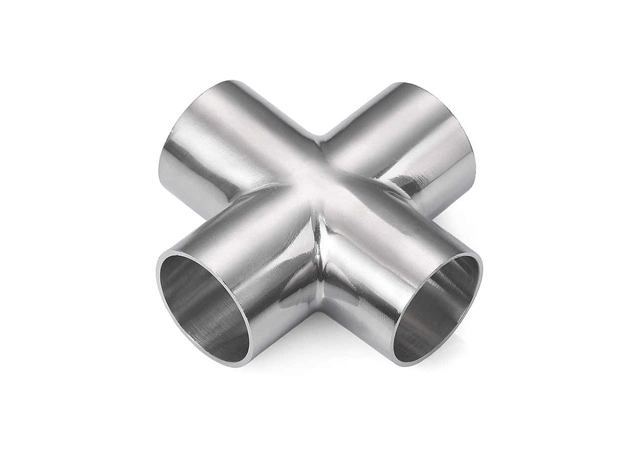

Stainless Steel Pipe Cross

Name: Stainless Steel Pipe Cross
Brand: Cangzhou Silver Valley technology Co., LTD

Stainless Steel Pipe Cross is a type of pipe fitting designed to connect four pipes at 90-degree angles, forming a cross shape. Made from stainless steel, this fitting offers excellent corrosion resistance, making it suitable for a wide range of applications, especially those involving chemicals, food processing, pharmaceuticals, and marine environments.

What is Stainless Steel Pipe Cross

A stainless steel cross, also known as a four-way pipe fitting, is designed to connect four pipes at 90-degree angles, forming a cross shape. Made from stainless steel, it offers excellent corrosion resistance and durability, making it suitable for various applications.

This fitting is crucial in systems requiring high purity and hygiene, such as food processing, pharmaceuticals, and marine environments. It allows for the distribution or collection of fluids from different directions, enhancing the efficiency and flexibility of the system.

Stainless steel crosses are valued for their strength, versatility, and ability to withstand harsh conditions, ensuring reliable performance and long service life.

Types of Stainless Steel Pipe Cross

Based on Connection Method
Type	Description
Butt Weld Stainless Steel Cross	Welded directly to pipes for a strong, leak-proof connection. Ideal for high-pressure and high-temperature systems.
Socket Weld Stainless Steel Cross	Pipes are inserted into sockets and fillet-welded. Suitable for smaller pipe sizes and high-pressure applications.
Threaded Stainless Steel Cross	Features threaded openings (NPT or BSP) for easy assembly and disassembly. Used in low to medium-pressure systems.
Based on Size Configuration
Type	Description
Equal Stainless Steel Cross	All four openings are of the same size. Used when connecting pipes of identical diameters.
Reducing Stainless Steel Cross	Openings have different sizes, allowing connection of pipes with varying diameters.
Based on Stainless Steel Grade
Type	Description
304/304L Stainless Steel Cross	General-purpose grade with good corrosion resistance and weldability. Suitable for most applications.
316/316L Stainless Steel Cross	Contains molybdenum for enhanced corrosion resistance, especially in chloride environments. Ideal for marine and chemical applications.
Duplex Stainless Steel Cross	Offers higher strength and corrosion resistance, suitable for extreme environments like offshore oil and gas.
Super Duplex Stainless Steel Cross	Provides exceptional strength and corrosion resistance for highly demanding applications.
Based on Manufacturing Standards
Type	Description
ASME/ANSI Stainless Steel Cross	Manufactured to ASME/ANSI standards for use in industrial and commercial piping systems.
DIN Stainless Steel Cross	Complies with DIN standards, commonly used in European markets.
JIS Stainless Steel Cross	Manufactured to Japanese Industrial Standards for specific regional applications.

Features of Stainless Steel Pipe Cross

Material: Made from stainless steel grades such as 304, 316, or 316L, known for their corrosion resistance and strength.

Design: Features four openings arranged in a cross shape, available in butt weld, socket weld, or threaded configurations.

Corrosion Resistance: Ideal for use in environments exposed to moisture, chemicals, or extreme temperatures.

Hygienic Properties: Suitable for industries requiring high cleanliness, such as food, beverage, and pharmaceuticals.

Standards for Stainless Steel Pipe Cross

Standard Organization	Standard Number	Description	Scope
ASME	ASME B16.9	Factory-Made Wrought Buttwelding Fittings	Specifies dimensions, tolerances, and requirements for buttweld fittings, including stainless steel crosses.
ASTM	ASTM A403	Wrought Austenitic Stainless Steel Piping Fittings	Covers stainless steel fittings for high-pressure service, including crosses.
DIN	DIN 2501	Dimensions and tolerances for steel pipe fittings	Specifies dimensions and tolerances for steel pipe fittings, including stainless steel crosses.
ISO	ISO 1127	Dimensions and tolerances for steel pipe fittings	Specifies dimensions and tolerances for steel pipe fittings, including stainless steel crosses.
GB/T	GB/T 12459	Specification for steel butt-welding fittings	Chinese standard for steel butt-welding fittings, including stainless steel crosses.
JIS	JIS B2311	Specification for steel pipe fittings

Advantages of Stainless Steel Pipe Cross

Corrosion Resistance: Resists rust and chemical corrosion, even in harsh environments.

Strength and Durability: Withstands high pressure, temperature, and mechanical stress.

Hygienic: Easy to clean and maintain, making it ideal for sanitary applications.

Aesthetic Appeal: Polished stainless steel has a clean, modern appearance.

Longevity: Offers a longer lifespan compared to carbon steel or plastic fittings.

Applications of Stainless steel pipe cross

Food and Beverage Industry: Used in processing and distribution lines due to its hygienic properties.

Pharmaceuticals: Ensures sterile and contamination-free fluid transport.

Chemical Processing: Handles corrosive fluids and gases safely.

Oil and Gas: Used in pipelines and refineries, especially in corrosive environments.

Water Treatment: Suitable for clean water and wastewater systems.

Marine Applications: Resists saltwater corrosion in offshore and shipboard systems.

Get in Touch with Silver Valley

Silver Valley are here to help！

We specialize in the production of seamless steel pipes, boiler pipes, oil casing and pipe fittings，If you have any inquiry, please feel free to contact us.
