Socket Welded Elbow

Name: Socket Welded Elbow
Brand: Cangzhou Silver Valley technology Co., LTD

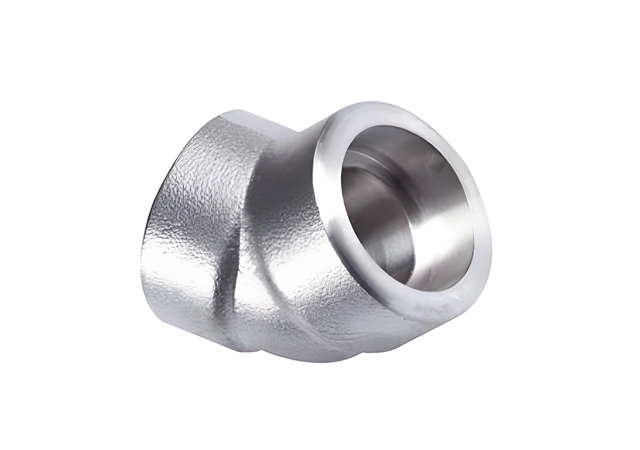

A socket weld elbow is a type of forged steel pipe fitting designed to change the direction of fluid flow in piping systems. It features a socket into which the pipe is inserted and then welded around the joint, providing a strong, leak-proof connection.

What is Socket Welded Elbow？

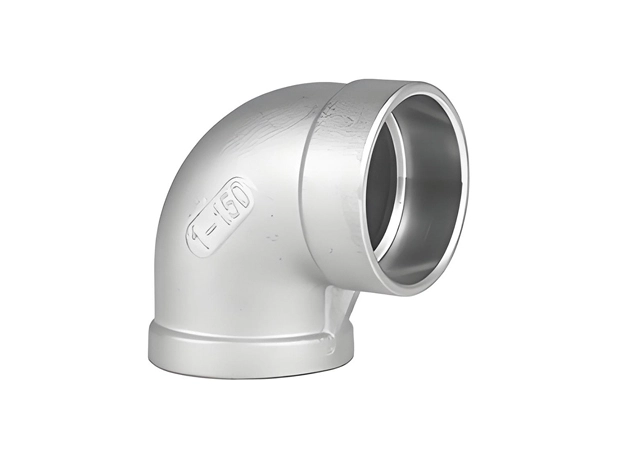

A socket welded elbow is a type of pipe fitting used to change the direction of flow in a piping system. It is designed to be connected to pipes using socket welding, a process where the pipe is inserted into a recessed area (socket) of the fitting and then welded around the joint. Socket welded elbows are commonly used in small-diameter piping systems and applications where high strength and leak resistance are required.

Standards of Socket Welded Elbow:

Socket welded elbows are manufactured according to industry standards, such as:

ASME B16.11: Covers forged steel fittings, including socket welded and threaded types.

MSS SP-79: Covers socket welding reducer inserts.

MSS SP-83: Covers socket welded and threaded unions.

Materials of Socket Welded Elbow

Carbon Steel: ASTM A105

Low Temp Carbon Steel: ASTM A350 LF2/LF3

Pipeline Steel: ASTM A694 F42/46/56/60/65

Alloy Steel: ASTM A182 F11/F12/F5/F9/F91/F92/F22

Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 321, 310S, 317, 347, 904L

Duplex Stainless Steel: ASTM A182 F51, F53, F44

Parameters of Socket Welded Elbow

Parameter	Details
Size Range	1/8" to 4" (DN6 to DN100)
Pressure Rating	Class 2000, Class 3000, Class 6000
Material	Carbon steel, alloy steel, stainless steel, brass, aluminum, nickel alloys
Manufacturing Process	Forging, CNC machining
Product Standard	ASME B16.11, MSS SP-79, MSS SP-95, BS 3799
Surface Treatment	Bevelling, polishing, galvanizing, epoxy coating, sandblasting

Comparison With Butt Welded Elbows:

Comparison with Socket Welded and Butt Welded Elbows:
Feature	Threaded Elbow	Socket Welded Elbow	Butt Welded Elbow
Connection Method	Threaded connection	Socket welding (fillet weld)	Butt welding (full penetration weld)
Pressure Resistance	Low to moderate	High	Very high
Temperature Resistance	Low to moderate	High	Very high
Ease of Installation	Easy	Moderate	Requires skilled labor
Reusability	Yes	No	No
Cost	Low	Moderate	High
Applications	Low-pressure systems, plumbing, HVAC	Small-diameter, high-pressure systems	High-pressure, high-temperature systems

Applications of Socket Welded Elbow

Socket welded elbows are used in systems where high strength and leak resistance are critical, such as:

High-pressure and high-temperature systems.

Small-diameter piping systems (typically 2 inches or smaller).

Chemical and petrochemical plants.

Power generation.

Hydraulic systems.
