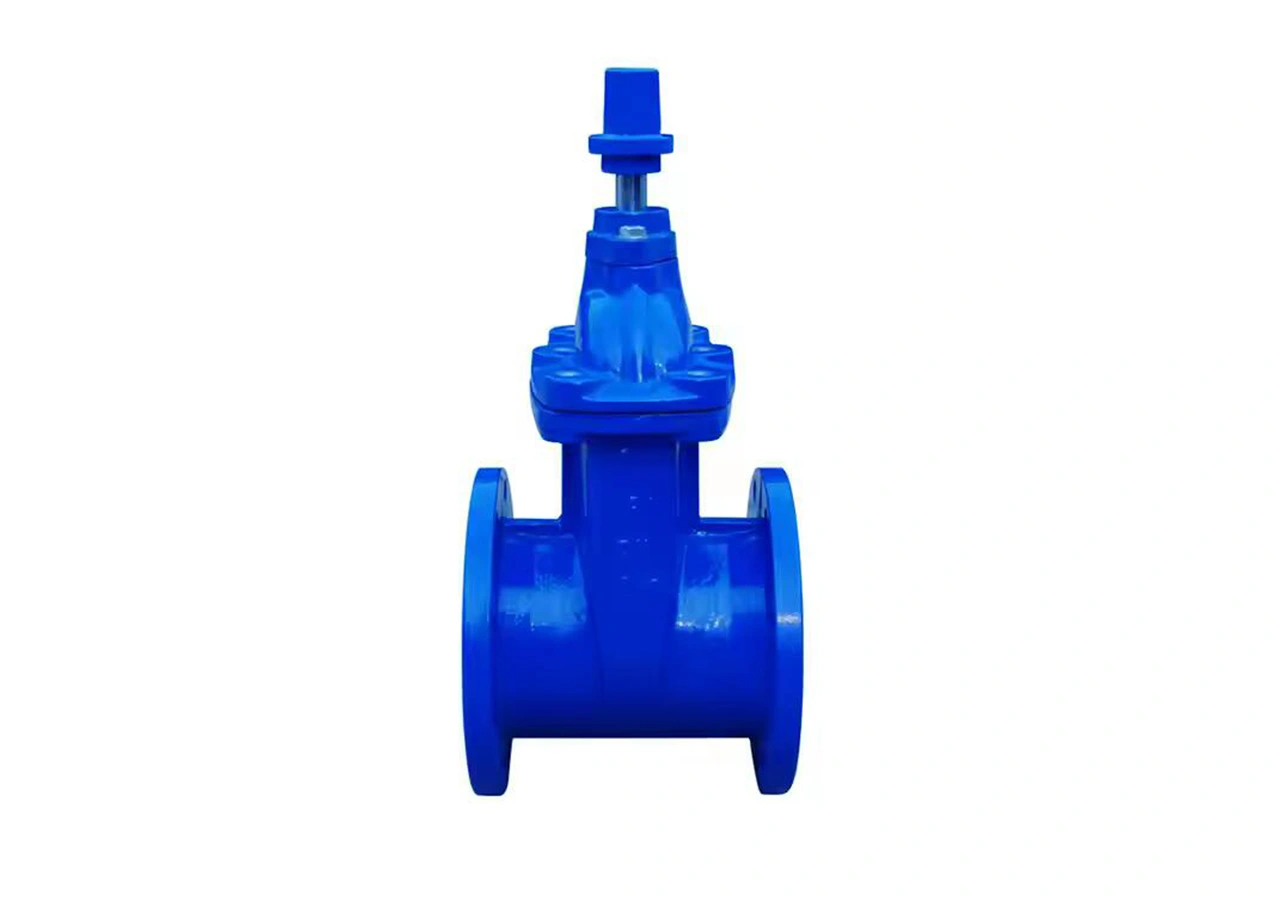

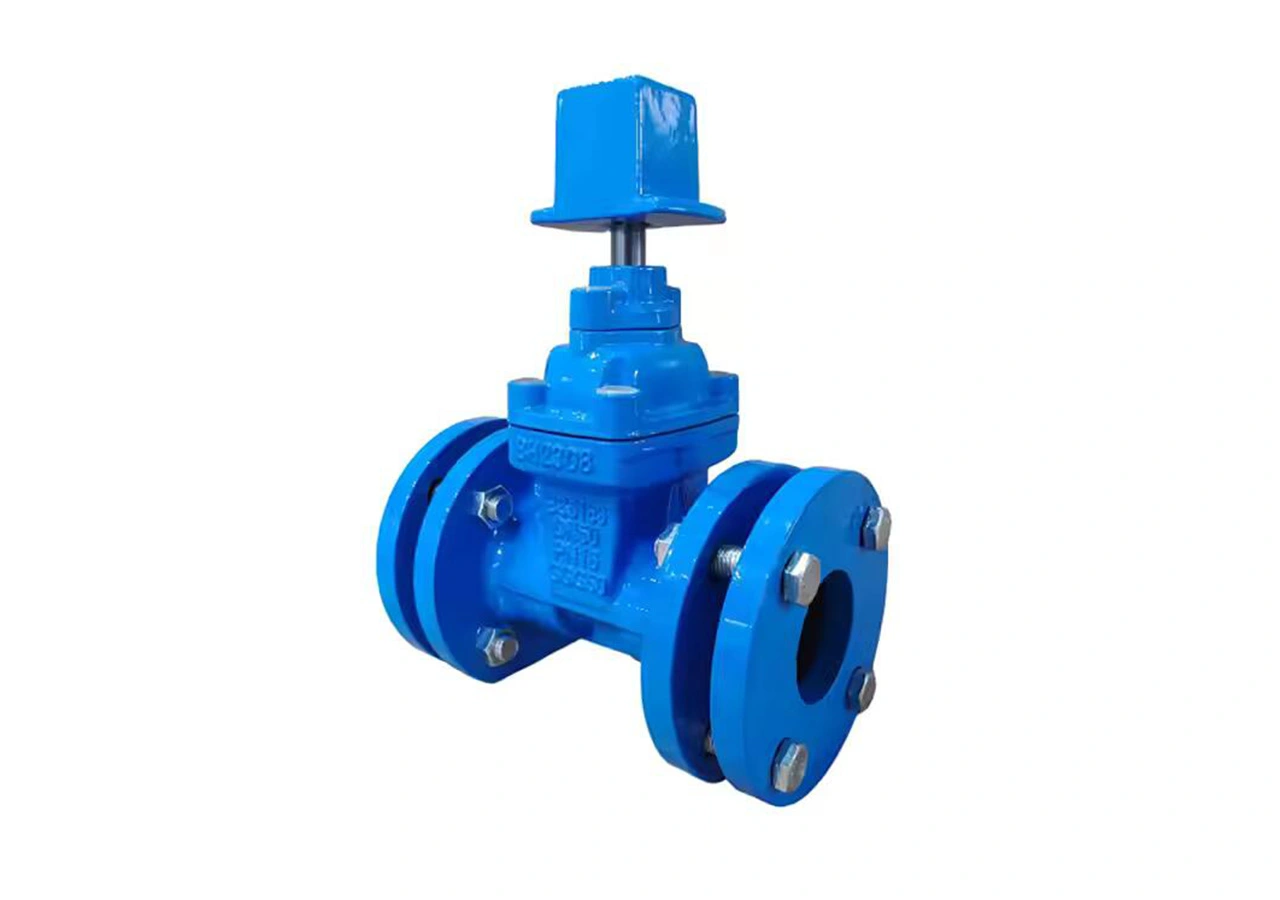

Advantages of High Pressure Resilient Seat Gate Valve
Excellent sealing: Elastic materials like rubber or PTFE ensure zero leakage.
High-pressure resistance: Robust design withstands pressures up to PN100 or higher.
Corrosion resistance: Materials like stainless steel suit corrosive media.
Low flow resistance: Full-bore design reduces energy loss.
Flexible operation: Supports manual, electric, pneumatic, or hydraulic actuation.
Long service life: Durable materials and simple maintenance extend lifespan.
Wide applicability: Suitable for liquids, gases, steam, and high-temperature/pressure conditions.
Cost-effective: Low maintenance and energy-efficient operation.
Safety and reliability: Complies with international standards (ISO, API, ANSI).
Ideal for industries like oil, gas, and chemical processing.
Technical Parameters
Diameter range: DN50-DN600 (or larger).
Pressure level: PN16-PN100 (or higher).
Applicable temperature: -20°C to 200°C (varies depending on the sealing material).
Medium type: water, steam, oil, gas, corrosive liquid, etc.
Connection method: flange connection, in accordance with international standards (GB, ANSI, DIN ect )
Structural Composition
Valve body: Carbon steel (WCB), stainless steel (304, 316), or alloy steel (WC6, WC9) for strength and corrosion resistance.
Sealing components: Rubber (NBR, EPDM) or PTFE for excellent sealing and flexibility.
Stem: Stainless steel (2Cr13, 304, 316) for high strength and wear resistance.
Disc/Gate: Stainless steel or carbon steel with hard coatings for durability.
Gaskets and packing: Graphite or PTFE for high-temperature and high-pressure sealing.
Surface treatment: Anti-corrosion coatings like epoxy or electroplating.
These materials ensure reliability in high-pressure, high-temperature, and corrosive environments.
Application of High Pressure Resilient Seat Gate Valve
Oil and gas: oil and gas pipelines, wellhead equipment.
Chemical industry: high-pressure pipelines for corrosive media.
Power industry: boiler feed water, steam systems.
Water treatment: high-pressure water supply and drainage systems.
High-pressure soft-sealed gate valves have become an indispensable key equipment in high-pressure pipeline systems due to their high-pressure adaptability and excellent sealing performance.
Advantages of High Pressure Resilient Seat Gate Valve
Excellent sealing: Elastic materials like rubber or PTFE ensure zero leakage.
High-pressure resistance: Robust design withstands pressures up to PN100 or higher.
Corrosion resistance: Materials like stainless steel suit corrosive media.
Low flow resistance: Full-bore design reduces energy loss.
Flexible operation: Supports manual, electric, pneumatic, or hydraulic actuation.
Long service life: Durable materials and simple maintenance extend lifespan.
Wide applicability: Suitable for liquids, gases, steam, and high-temperature/pressure conditions.
Cost-effective: Low maintenance and energy-efficient operation.
Safety and reliability: Complies with international standards (ISO, API, ANSI).
Ideal for industries like oil, gas, and chemical processing.
