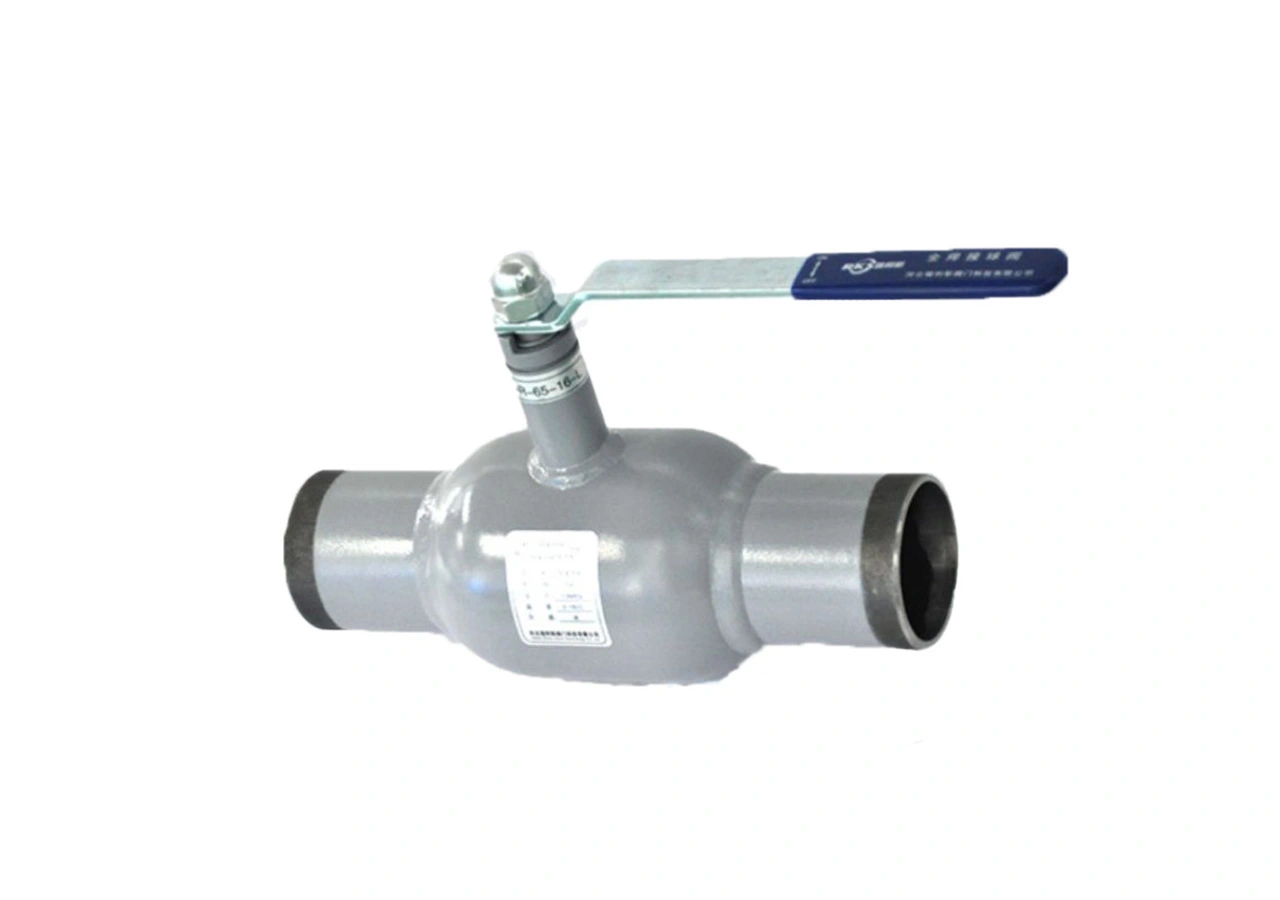

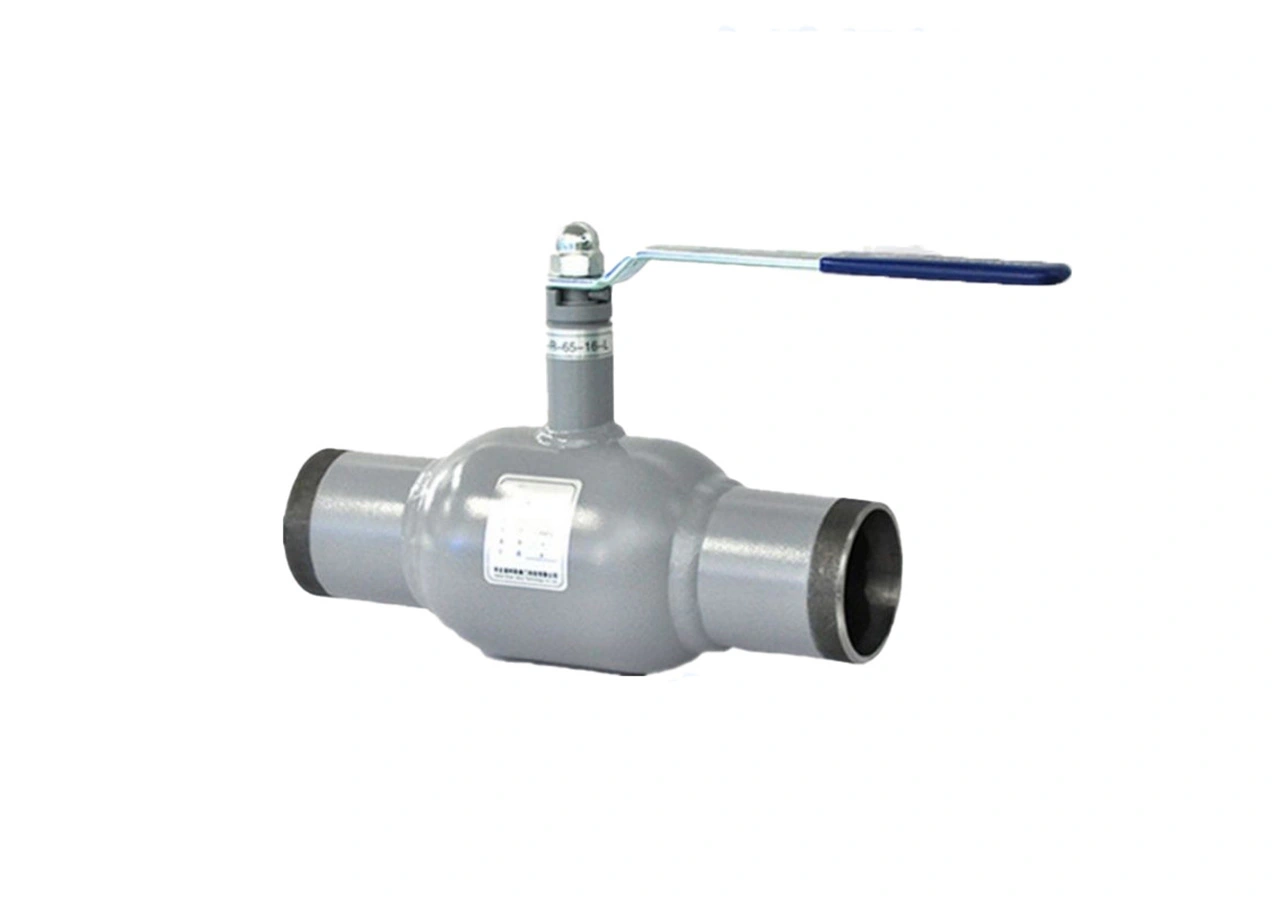

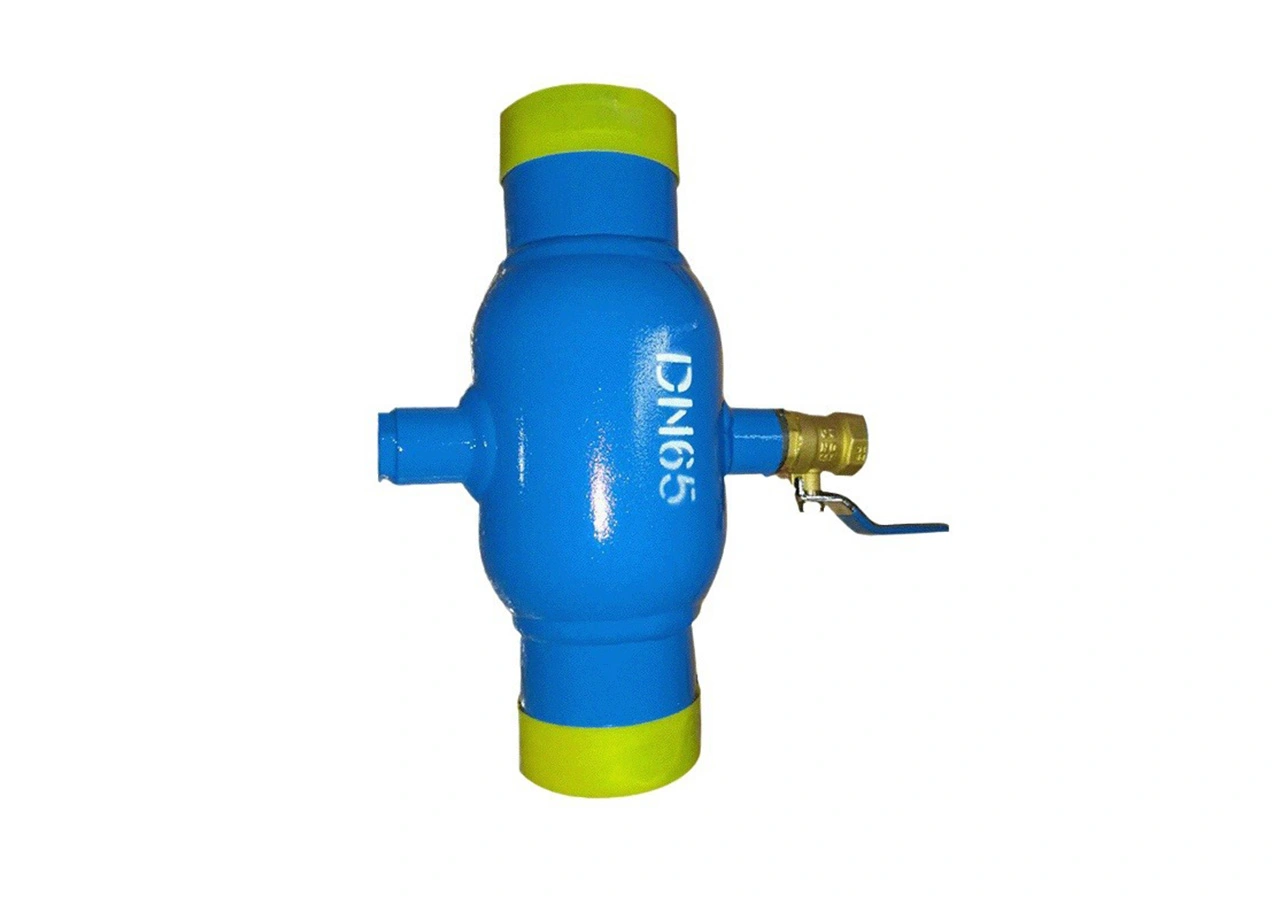

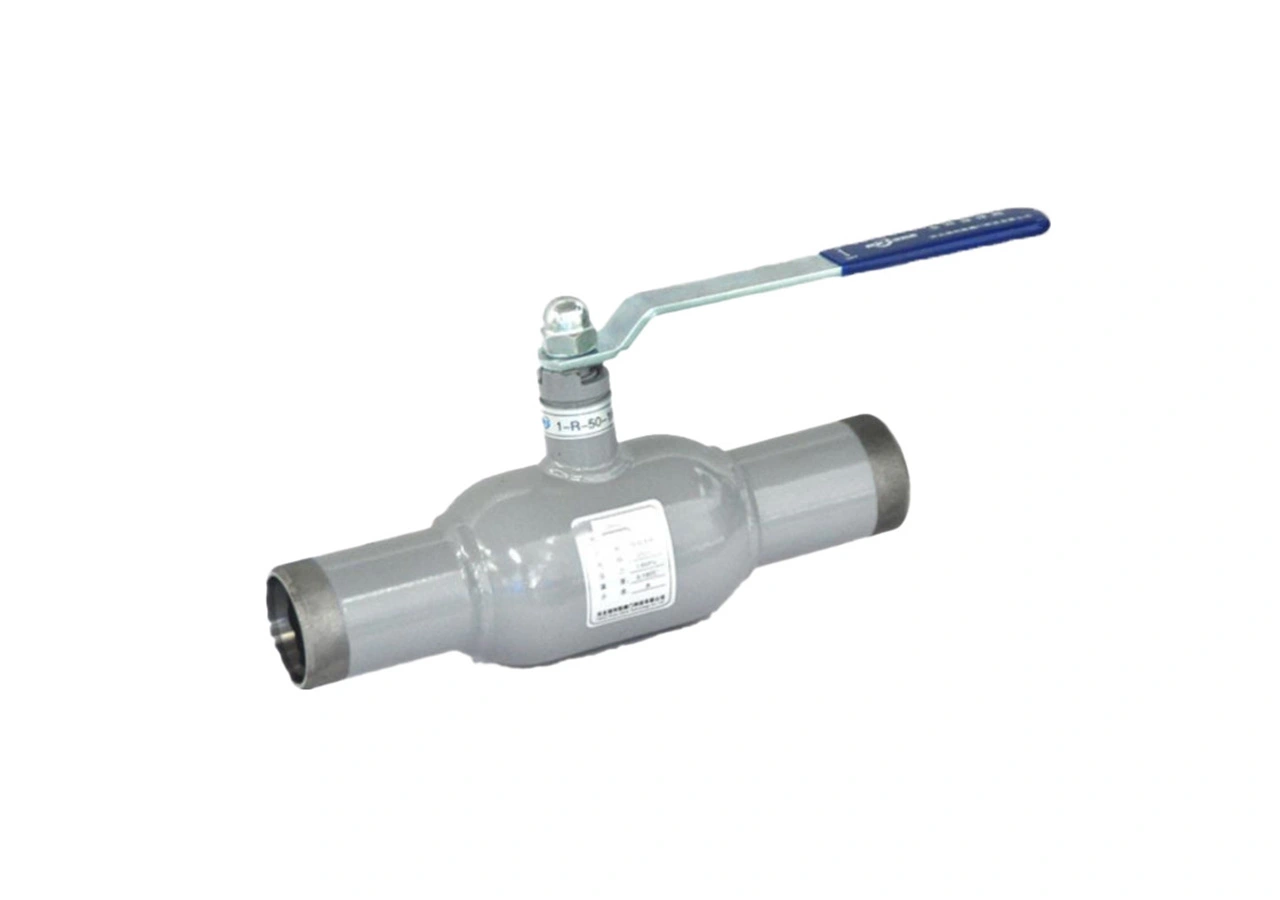

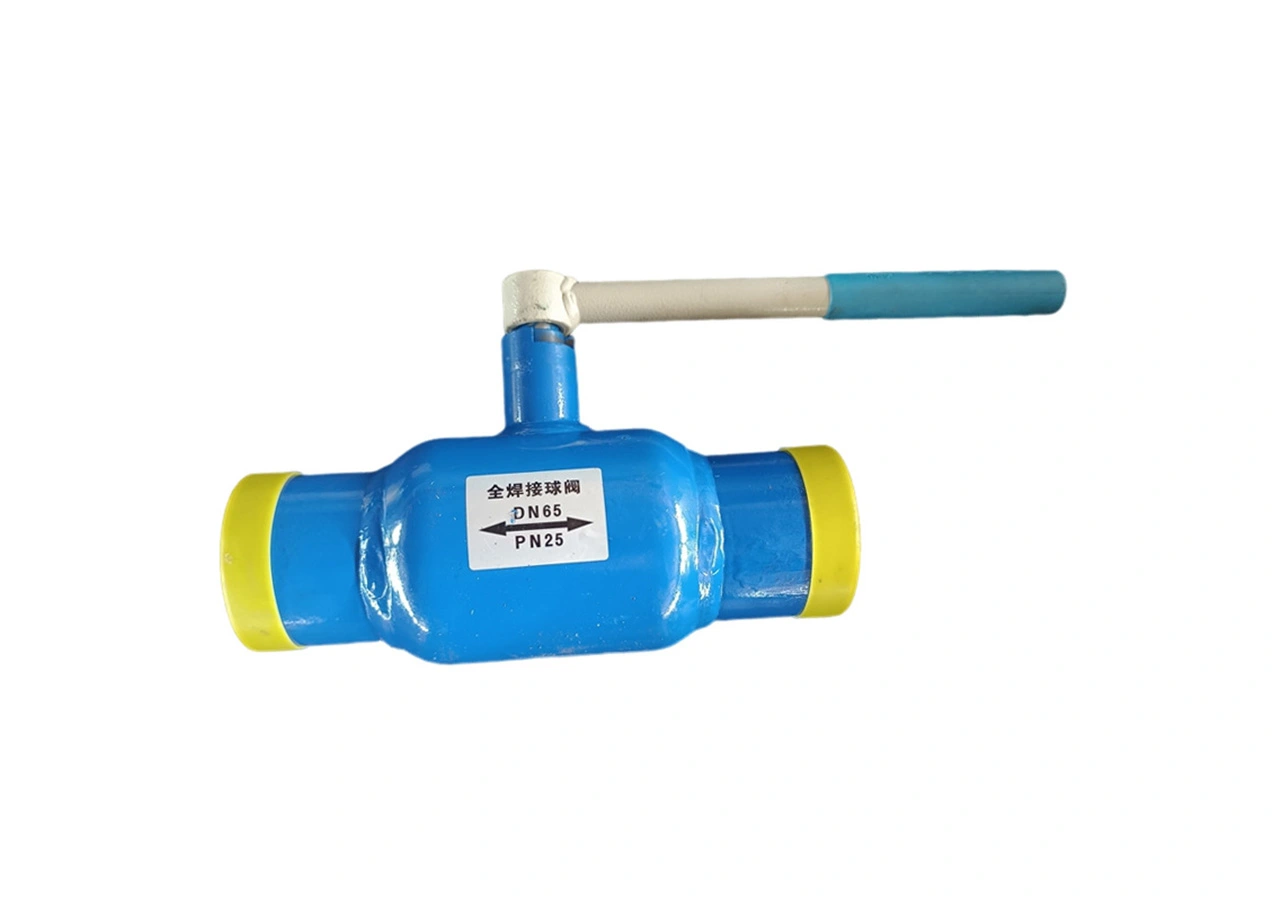

Fully Welded Ball Valve

The fully welded ball valve uses forging materials and fully welded valve bodies instead of bolts and nuts to avoid potential valve body leakage. Using forged valve bodies can better ensure wall thickness and avoid loose castings, sand holes and other casting problems.

Fully welded ball valves are available in spherical and barrel shapes. Usually, the spherical valve body has only one weld seam, while the cylindrical valve body has two weld seams

Material: low temperature carbon steel, carbon steel

Diameter: 2"~60"(DN50~DN1500)

Pressure range: Class150 –2500(PN16~PN420)

Connection: RF, RTJ, BW

Working temperature: -46℃ - +200℃

Operation mode: handle, worm gear, electric, pneumatic, electro-hydraulic, electro-gas, etc.

City gas: gas output pipelines, trunk lines and branch supply pipelines, etc.

Central heating: output pipelines, trunk lines and branch lines of large heating equipment.

Heat exchangers: pipelines and opening and closing of various circuits.

Steel mills: various fluid pipelines, exhaust gas emission pipelines, gas and heat supply pipelines, fuel supply pipelines.

Various industrial equipment: various heat treatment pipelines, various industrial gas and heat pipelines.
