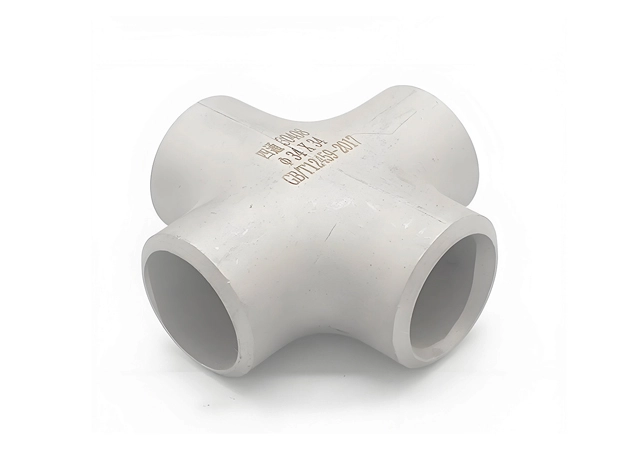

Butt Weld Cross

Butt Weld Cross is a fitting that connects four pipes together at 90-degree angles, forming a cross shape. The term "butt weld" indicates that it is designed for butt welding, which means the pipes are joined end-to-end by welding.

What is Butt Weld Cross？

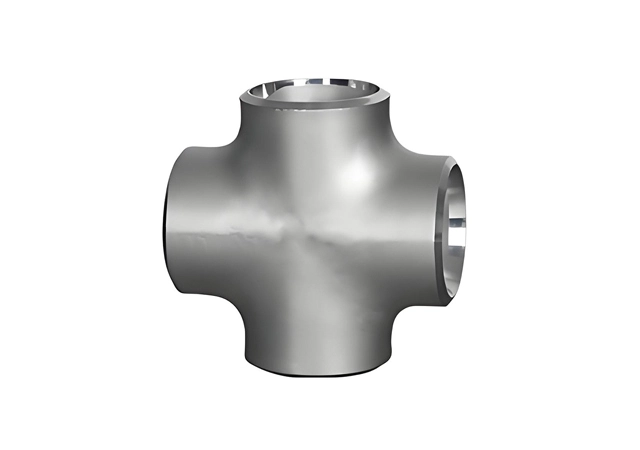

A Butt Weld Cross is a type of pipe fitting used in piping systems to connect four pipes at a right angle (90 degrees). It is designed to allow fluid or gas to flow in four directions, making it a crucial component in complex piping networks. The term "butt weld" refers to the method of joining the fitting to the pipes, where the ends of the pipes are aligned and welded together.

Types of Butt Weld Cross

Type	Description	Application
Equal Socket Weld Cross	All four socket openings are of the same size.	Systems requiring uniform flow distribution.
Reducing Socket Weld Cross	Socket openings have different sizes, allowing connection of pipes with varying diameters.	Systems requiring flow distribution or merging from pipes of different sizes.
Concentric Socket Weld Cross	The centerlines of all four openings are concentrically aligned.	Systems requiring precise alignment and smooth flow transition.
Eccentric Socket Weld Cross	The centerlines of the openings are offset, creating an eccentric alignment.	Systems requiring fluid drainage or air removal.
Full Coupling Socket Weld Cross	Features full coupling sockets on all four ends, providing a larger welding surface.	High-pressure and high-temperature applications.
Half Coupling Socket Weld Cross	Features half coupling sockets on all four ends, providing a smaller welding surface.	Low-pressure systems and smaller pipe sizes.
Material Classification
Material	Characteristics	Applicable Scenarios
Stainless Steel	Corrosion-resistant and high strength.	Corrosive environments and high-strength requirements.
Carbon Steel	General-purpose material.	General applications.
Alloy Steel	High-temperature and high-pressure resistance.	High-temperature and high-pressure environments.
Duplex and Super Duplex Stainless Steel	Resistant to extreme corrosion.	Extreme corrosive environments.

Features of Butt Weld Cross

Configuration: It has four openings, each at a 90-degree angle to the others, allowing for the connection of four pipes in a cross pattern.

Material: Typically made from materials like carbon steel, stainless steel, or other metals, depending on the application and environment.

Welding: Designed for butt welding, which provides a strong and seamless connection between pipes. This method involves welding the ends of the pipes directly to the fitting.

Standards for Butt Weld Cross

Standard Organization	Standard Number	Description	Scope
ISO	ISO 1127	Dimensions and tolerances for steel pipe fittings.	General specifications for steel pipe fittings.
	ISO 4210	Requirements for butt-welding end fittings.	Butt-welding end fittings and their dimensions.
	ISO 9001	Quality management systems.	Ensures rigorous quality control processes.
DIN	DIN 2501	Dimensions and tolerances for steel pipe fittings.	General specifications for steel pipe fittings.
DIN	DIN 2502	Butt-welding end fittings and their dimensions.	Butt-welding end fittings.
ASTM	ASTM A234	Piping fittings of wrought carbon steel and alloy steel for high-pressure service.	Carbon steel and alloy steel piping fittings, including butt weld crosses.
ASTM	ASTM A403	Wrought austenitic stainless steel piping fittings.	Stainless steel piping fittings, including butt weld crosses.
ASME	ASME B16.9	Factory-made wrought buttwelding fittings.	Buttwelding fittings, including crosses.
ASME	ASME B16.25	Buttwelding ends.	Buttwelding ends for pipe fittings.
EN	EN 10253	Steel fittings for pressure purposes.	General specifications for steel fittings.
EN	EN 10242	Steel fittings for pressure purposes, including butt-welding fittings.	Butt-welding fittings for pressure purposes.
GB/T	GB/T 12459	Specification for steel butt-welding fittings.	Steel butt-welding fittings.
GB/T	GB/T 13401	Specification for steel pipe fittings.	General specifications for steel pipe fittings.
JIS	JIS B2311	Specification for steel pipe fittings.	General specifications for steel pipe fittings.
JIS	JIS B2312	Specification for steel pipe fittings, including butt-welding fittings.	Butt-welding fittings for steel pipes.

Material for Butt Weld Cross

Carbon Steel：ASTM A234 WPB (Wrought Piping Fittings, Carbon Steel)

Stainless Steel：ASTM A403 WP304/304L (Wrought Piping Fittings, Stainless Steel)

Nickel Alloys：ASTM B462 (Nickel and Nickel Alloys)

Duplex Stainless Steel：ASTM A890 (Duplex Stainless Steel Forgings)

Advantages of Butt Weld Cross

Strength: Provides a robust and durable connection.

Leak-proof: Welding ensures a tight seal.

Versatility: Suitable for high-pressure and high-temperature applications.

Applications of Butt Weld Cross

Industrial Piping Systems: Connects multiple pipes in chemical and oil industries.

Oil and Gas Pipelines: Links branch pipes for fluid transport.

Food Processing Plants: Transports food-grade liquids hygienically.

Pharmaceutical Facilities: Conveys pharmaceutical liquids, ensuring purity.

Marine Environments: Used in ship piping, resistant to seawater.

Residential Plumbing: Connects water pipes for stable supply.

HVAC Systems: Connects ducts or water pipes in heating and cooling systems.

Power Plants: Used for steam and water pipes.
