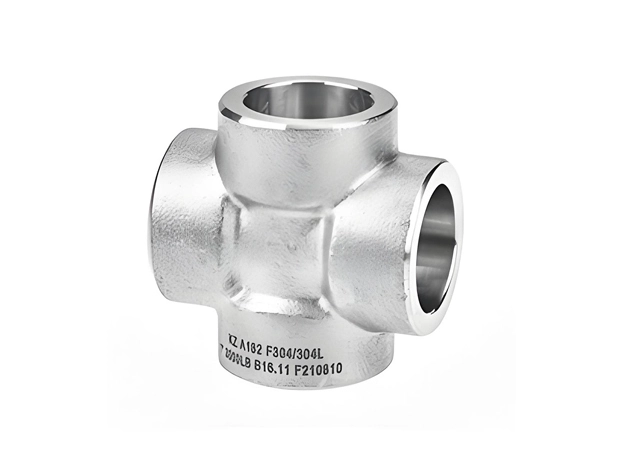

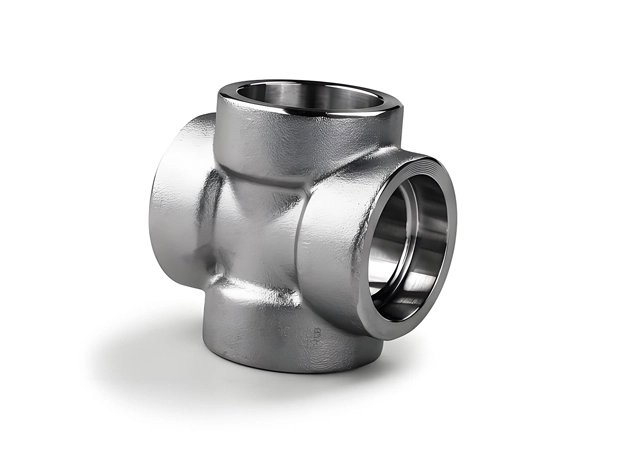

Socket Weld Cross

A Socket Weld Cross is a type of pipe fitting used in piping systems to connect four pipes at a right angle (90 degrees). Unlike a Butt Weld Cross, which is welded directly to the pipes, a Socket Weld Cross has socket-like openings that allow pipes to be inserted into the fitting before being welded. This design is particularly useful for smaller pipe sizes and high-pressure applications.

Design: Features sockets into which pipes are inserted and then welded.

Strength: Provides a strong and secure connection, suitable for high-pressure applications.

Material: Commonly made from materials like carbon steel, stainless steel, or other metals.

Size: Typically used for smaller diameter pipes (e.g., 1/2 inch to 2 inches).

Ease of Assembly: Pipes are easily inserted into the sockets, simplifying installation.

Strength: Provides a robust and durable connection, suitable for high-pressure applications.

Leak-proof: Welding ensures a tight seal, minimizing the risk of leaks.

Oil and Gas Pipelines: Connects pipes in high-pressure oil and gas systems.

Chemical Processing: Suitable for corrosive fluid transport in chemical plants.

Power Generation: Used in steam and coolant lines in power plants.

Hydraulic Systems: Ensures leak-proof connections in high-pressure hydraulics.

Water Treatment: Distributes water flow in treatment and distribution systems.

Pharmaceuticals: Maintains sterile and secure connections in processing lines.

Food and Beverage: Ensures hygienic and durable connections in production lines.

Marine Systems: Resists corrosion in seawater and offshore applications.

HVAC Systems: Distributes air or coolant in heating and cooling systems.

Industrial Machinery: Connects fluid lines in heavy machinery and equipment.
